Waterproof UFO High Bay LED Fixtures Elegant Designed With Three Color Temperature

  • 1
  • 2

Brand Name : SUNLUXX

Model Number : HBL-120Watt

Certification : CE RoHs

Place of Origin : China

MOQ : 1

Price : US$129.80/PCS unit EXW prices

Payment Terms : T/T, Western Union

Supply Ability : 5000 Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : 38cm*38cm*26cm/1pcs

Input Voltage : 90-305VAC

Beam angle : 60 ° , 90 ° , 120 °

Lumen : 18000

Color Temperature : 3000K,4000K,5000K,5700K

Driver Brand : Meanwell or Moso

IP : 66

Operation Temp : -40℃ ~ +45℃

LED Brand : Nichia 3030 and Lumileds 3030

Contact Now

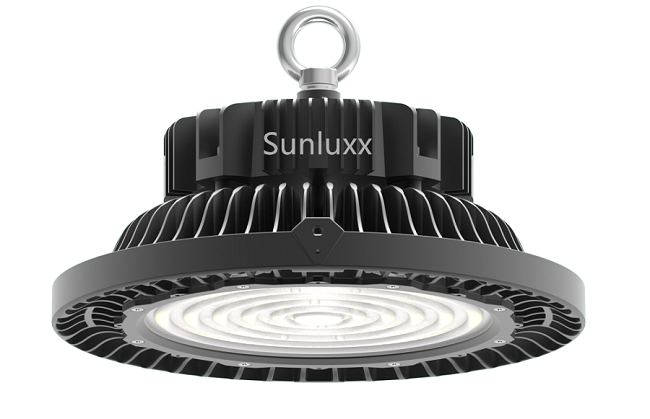

Elegant Design Waterproof High Bay LED UFO Fixtures With Three Color Temperature





High Bay LED UFO Fixtures come in the traditional circular shape with optional aluminum.These types of High Bays have the LED chips on the underside of the fixture covered with Lens and with the LED driver attached on the side.But LED driver separated with the hean sink,The advantage of this is to make sure the heat of LEDs and the driver for better cooling and to prevent overheating.



Features



1. Compact and Fashion design.

2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)

3. Uniform light distribution

4. The first patented proprietary optics and higher transmittance 95% water wave lens

5. Surface anti-aging electrostatic spray-paint processing,ensure longer lifespan

6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.

7. Extra lengthen cable is available

8. Easily replace standard high bay fixtures.

9. 5 years warranty



Produce Code

 HBL-60Watt    HBL-80W 100W    HBL-120W150W     HBL-200W240W
Power  60Watt  80W   100W 120W  150W  200W  240W
Input Voltage  90-305VAC
Input Current

60W:0.27A@220VAC 80W: 0.36A@220VAC  100W:0.45A@220VAC

120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC

 240W:1.10A@220VAC
PF >0.90@220VAC
DC output voltage 60W:54V                           80W100W120W150W: 48V
DC output current 60W:1.05A    80W: 1.5A    100W: 1.9A   120W: 2.3A   150W:2.9A           200W:3.9A      240W:4.65A
Dimming (Optinal) 3 in 1 dimming (PWM, 0-10V, Resistor),Dali
CCT 4000K,5000K,5700K,3000K

Ra >70

5000K

 Typical Flux

60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%,

120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5%

240W:36000Lm±5%
LED Brand Nichia 3030 and Lumileds 3030
Beam Angle 60°,90°,120°
Operation Temp -40℃ ~ +45℃
Storage Temp -40℃ ~ +85℃
Life Circle 45℃ 50000Hours
IP Class IP66
IK Class IK08
Certificate CE,ROHS
Body Color Black (default with RAL9005),Gray ( optional for RAL9007)



Product



Waterproof UFO High Bay LED Fixtures Elegant Designed With Three Color Temperature



Aging Test



Waterproof UFO High Bay LED Fixtures Elegant Designed With Three Color Temperature



Package



Waterproof UFO High Bay LED Fixtures Elegant Designed With Three Color Temperature
