DaLi Function High Bay LED Lights , One - Piece Integrated Wires Industrial LED Fixture

Name: DaLi Function High Bay LED Lights One Piece Integrated Wires Industrial LED Fixture
Brand: SUNLUXX
Price: 105.88 USD

Buy cheap DaLi Function High Bay LED Lights , One - Piece Integrated Wires Industrial LED Fixture product

Brand Name : SUNLUXX

Model Number : HBL-100Watt

Certification : CE RoHs

Place of Origin : China

MOQ : 1

Price : US$105.88/PCS unit EXW prices DALI Dimmable

Payment Terms : T/T, Western Union

Supply Ability : 5000 Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : 34cm*34cm*24cm/1pcs

Input Voltage : 100-277VAC

Beam angle : 60 ° , 90 ° , 120 °

Lumen : 14500LM

Color Temperature : 3000K,4000K,5000K,5700K

Driver Brand : Meanwell

IP : 66

PF : 0.90

Ra : Ra>80,Ra>70

Contact Now

DaLi Function One-piece Integrated Wires High Bay LED Lights for Industrial Application

DALI High Bay LED Lights are best suited for gymnasiums,warehouses, manufacturing plants and any other industrial or commercial facility with high ceilings.LED High Bays 100 Watt 14500 lumen universal voltage 120-277V,above 300V is available.

Features

1. Compact and Fashion design.

2. Luminous efficacy up to 160 lm/W, high power factor (>0.95)

3. Uniform light distribution

4. The first patented proprietary optics and higher transmittance 95% water wave lens

5. Surface anti-aging electrostatic spray-paint processing,ensure longer lifespan

6. 60/90/120 degree IES distribution selection, national listing lab tested with IES standard.

7. Dali Dimmer or Microwave sensor is optional

8. Extra lengthen cable is available

9. Easily replace standard high bay fixtures.

Produce Code		HBL-60Watt HBL-80W 100W HBL-120W150W HBL-200W240W
Power		60Watt	80W 100W	120W 150W	200W 240W
Input Voltage		90-305VAC
Input Current		60W:0.27A@220VAC 80W: 0.36A@220VAC 100W:0.45A@220VAC 120W:0.55A@220VAC 150W:0.68A@220VAC 200W:0.91A@220VAC 240W:1.10A@220VAC
PF		>0.90@220VAC
DC output voltage		60W:54V 80W100W120W150W: 48V
DC output current		60W:1.05A 80W: 1.5A 100W: 1.9A 120W: 2.3A 150W:2.9A 200W:3.9A 240W:4.65A
Dimming (Optinal)		3 in 1 dimming (PWM, 0-10V, Resistor),Dali
CCT		4000K,5000K,5700K,3000K
Ra >70 5000K	Typical Flux	60W:9000Lm±5%,80W:12000Lm±5%,100W:15000Lm±5%, 120W:18000Lm±5%,150W:22500Lm±5%,200W:30000Lm±5% 240W:36000Lm±5%
LED Brand		Nichia 3030 and Lumileds 3030
Beam Angle		60°,90°,120°
Operation Temp		-40℃ ~ +45℃
Storage Temp		-40℃ ~ +85℃
Life Circle		45℃ 50000Hours
IP Class		IP66
IK Class		IK08
Certificate		CE,ROHS
Body Color		Black (default with RAL9005),Gray ( optional for RAL9007)

DaLi Function High Bay LED Lights , One - Piece Integrated Wires Industrial LED Fixture

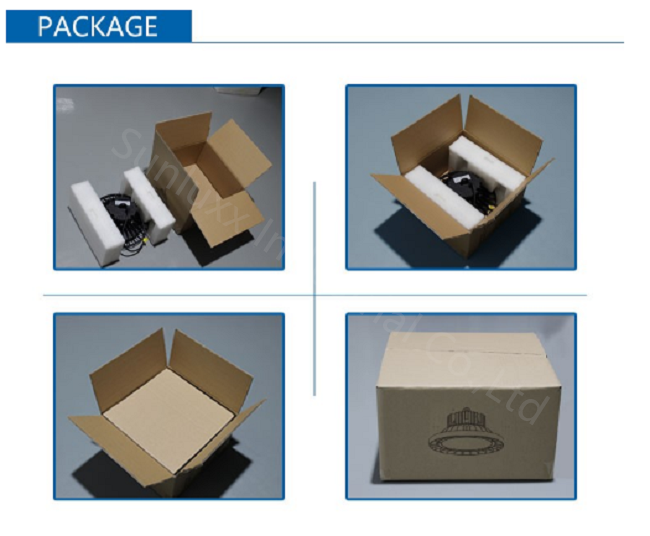

Package

DaLi Function High Bay LED Lights , One - Piece Integrated Wires Industrial LED Fixture
