Built-in Photocell And Sensor LED Yard Light 35W Arm Pole Smart Yard Light
Quick Information
| Model Number | YL-35W |
| Light Source | 88pcs SMD2835 |
| Luminous Flux | 3850Lm |
| Rated Wattage | 35W |
| Base | 2 Pins Wire |
| Rated Voltage | 100~277VAC |
| Beam Angle | 120 ° |
| Lifetime | 50,000hrs |
| CCT | WW,NW,CW. |
| Dimension | 285x195x100mm |
| Net weight | 1.50kgs |
| Replace | HPS 175W |
| IP Rating | IP65 |
| CRI | Ra>70 |
| Warranty | 5 Years |
| THD | >20% |
| Efficiency | 120LM/W |
| Operation Temperature | -35 degree~55 degree |
Product Feature
- Universal voltage AC120-277V 50/60Hz.
- 120lm/W for fixture.
- Constant current power supply.
- Respirator design: Balance the different pressure between the atmosphere and the shell, it is water proof also defog and avoiding the drop condensation, extend the product lifespan.
- 5 years Warranty.
- Available with Photocell sensor.
- UL certificate.
- Using high quality SMD2835 chips.
- High Power Factor >0.9, Low THD Driver.
- Constructed from die-cast aluminium, with a PC cover, and rated IP65.
Photocell Sensor(Optional)
Photo electric switch for outdoor use
Lighting from early evening & Dark when dawn
Yard Light Application
Widely used in Shopping mall, hotel, shop, showroom, cafe, restaurant, garden, porch,etc.

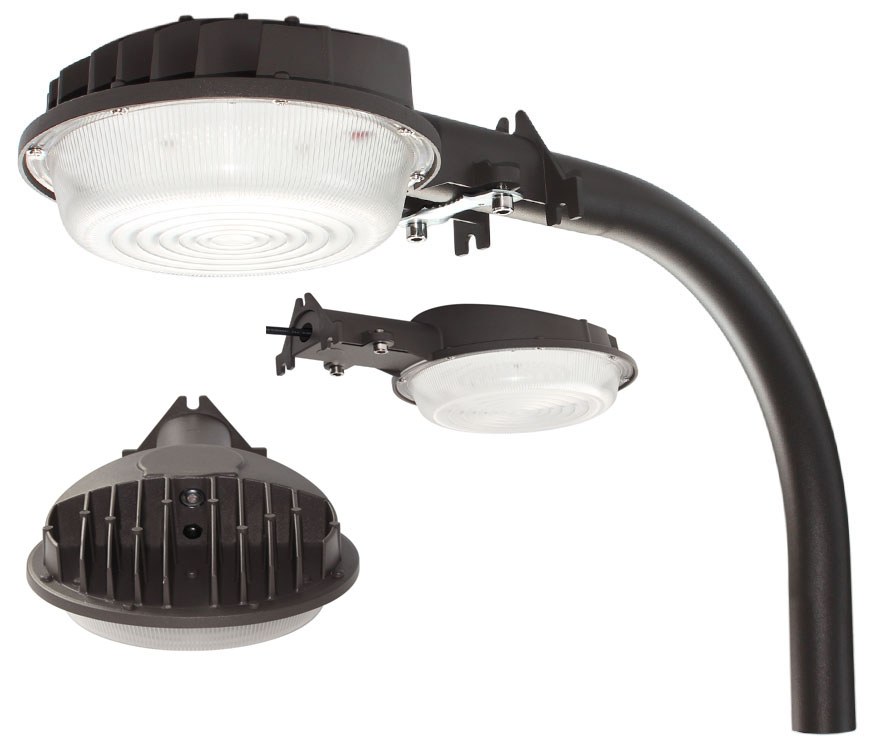

Product Picture:
Installtion instruction
1) LED Yard Light Dusk-to-dawn luminaire features a design that can be mounted to any vertical surface using lagbolts or
other comparable and suitable anchors, with a wiring compartment that is easily accessible without the need to remove
the lens or disassemble the fixture.
2) The LED Yard Light can also be mounted to existing 1-1/2'' or 1-5/8'' pipe mounts, offering the installer the flexibility to satisfy
many different mounting applications and requirements.
3) This is especially useful when using the LED Yard Light to retrofit older dusk-to-dawn
luminaires.
Sunluxx Service
We are partner more than just a supplier for you!
1. Volume production, fast delivery, reliable quality;
2. 100% QC test before ship out for golden trust
3. Reply within 24 hours and competitive price
35W Yard Light Picture Detail
