CE,ROHS Europe Standard LED Street Light With Die-casting Aluminum Housing
Quick Detail
| Model Number | STL-30W |
| Driver | Brand Inventronics EUC |
| LED chips | Lumileds 3030 |
| Voltage | AC100-277V 50/60Hz |
| Insulation Grade | Class I |
| IP Rate | IP66 |
| IK Rate | IK08 |
| LED Luminous Efficiency | 145LM/W |
| Lifespan | 50000Hrs |
| Operating Temp: | -40° ~ +45° |
| Lens | PMMA |
| Lighting Angle | ME1-ME5 |
| Housing | Die-Casting Aluminum |
| Dimmable (0-10V) | NO |
| Gross Weight | 5.5KG |
Product Feature
1) Power turn off Protector : When the lamp maintance,Open Lamp flash,Internal power lamp. Protect the safety of personnel.
2) WAGO quick connector : disassemble easily which reduces maintance costs.
3) Surge protection device (10KV) :Drive power,extend the life of product.
4) Level bubble:Easy for the installer to adjust the position of the lamp.
Intelligent Street lighting system
We provides a total solution for intelligence street lighting system.
The street light intelligence system is consist of software,concentrator,terminal controller.
The concentrator controller is installed in the distribution cabinet, the terminal controller is installed in the lighting terminal.
It proceeds with communication via GPRS/CDMA/WCDMA wireless network & monitor center and proceeds with communication via ZIGBEE/PLC.
Concentrator controller can control each terminal controller via receiving,executing,forwarding PC management software, which can control each lamp's switching on/ off or dimming, then save electric energy to achieve failure lamps function.
Connector controller can built-in DO to achieve street light loop control. It can connect with other equipment to collect local illumination, temperature and other information, feedback to PC management softwave and achieve to monitor the current information.
Installation Type

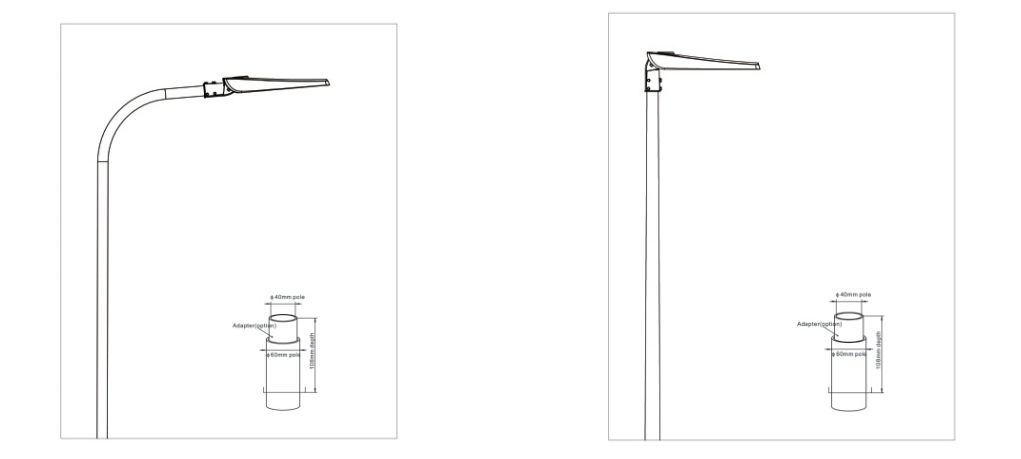

The Street light has two installation way: Rail installation and straight rod installation.
Application
Urban roads, Industrial areas, Residential areas, Sidewalks, Parking lot, Gardens, Yard,ect.
Why Choose us?
We are partner more than just a supplier for you!
1. Volume production, fast delivery, reliable quality;
2. 100% QC test before ship out for golden trust
3. Reply within 24 hours and competitive price
